Function introduction

· Fits most 14"-27" POS Monitor
· VESA compiance: 75x75,100x100mm
· Load capacity: 22 ibs (10kg)
· Tilted angleup and down 120°
· Left and right 180°
· Plane rotation: 360°
Share:
  • Wall mount
  • Wall mount
  • Wall mount
  • Wall mount
Features

Multifunctional display bracket

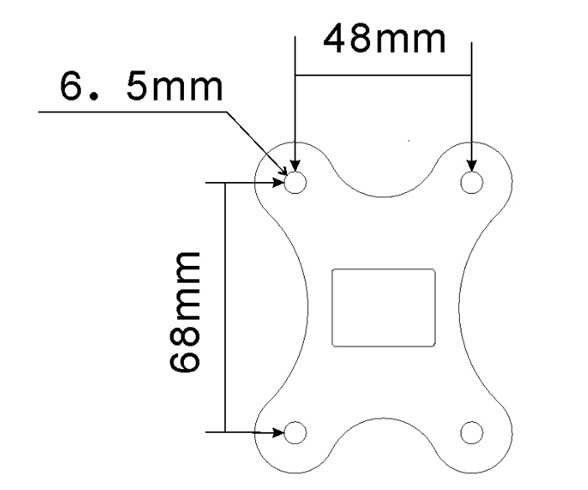

Meet VESA standard 75mm and 100mm hole spacing, and add another 50mm hole spacing, which makes it more applicable (that is, when the hole spacing on the back of LCD is 50X50mm,75X75mm or 100X100mm is suitable for use).


Specs

The LCD can be adjusted to an appropriate angle, and the maximum bearing weight is 10KG.

(It is recommended that the monitor should not exceed 8KG, so that its life and durability are more stable)

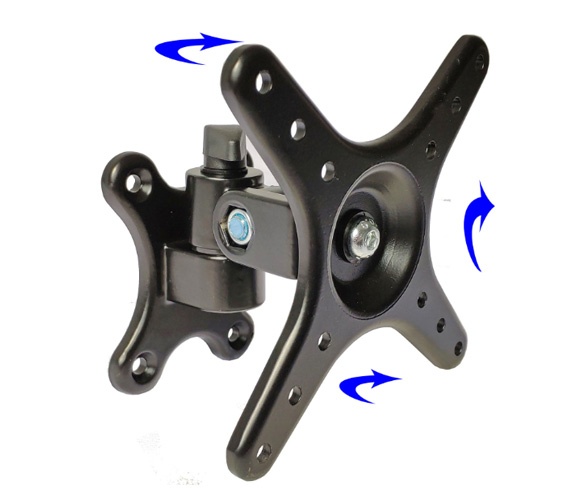

Adjust angle:

Up and down 90 degrees;

Left and right 180 degrees

Plane rotation: 360 degrees (the horizontal screen of the monitor becomes a solid screen)



Distance from the wall: 8cm

Material: aviation aluminum alloy+cold-rolled sheet

Packing: 40 sets/box


Accessories:

screws, plastic expansion plugs on the upper wall
